無塵自動循環回收噴砂機系列

◆品牌基本特征 Product features（請(qing)往左邊挑選多大量案例分享照片兒供(gong)可以參考）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”生產線上廢氣粉層衛生防疫的標準。砂料、粉層半自動回籠、分離法、反復的在使用，辦公廠房徹底無粉層的污染。主設備節能減排的設計，大幅度提高了操作員的工作的強度和安全作業環鏡標配噴吹閥設施，可電腦一鍵清理掉濾網灰層。內嵌式分水過濾程序器。可對收縮自然空氣展開三次油脂分離。電腦一鍵裝料，將吸砂頭加上砂料中，啟動服務器真空室泵裝置將電腦一鍵裝料。PLC可程序設計把握（加裝），料位告警實用功能(加配)。要設調壓開關按鍵、反吹風按鍵。不穩的氣控裝置與磨料磨具閥。運作曲率半徑20-70米，外表面治理級別為達Sa2.5-3級。增加安全性防水涂料轉換開關轉換開關電源電電源線插頭插銷，不便宜的使用。增加管理轉換開關轉換開關電源飛防電電源線插頭插銷不便宜的使用。獨具特色美觀大方的防污管理面版與自動把握箱。保障與檢查尤為不便宜。車式外箱設計，防雨布防污，挪動不便宜。外箱門框選擇高效門瑣快速連接，折卸不便宜。手轉換開關管理（自動把握DC24V）。一機三用，有開館式、工業企業吸砂器、干凈型三大專用設備的性能。噴砂臺式主機分為特色把控二次回路，任務壓力值在0.2Kpa-0.8Kpa區間內指定轉換，可滿足了其他鋼件的噴砂工藝技術需要。施用區間：去銹、除水性油漆、管道焊接處   理（涵蓋不銹鋼板管管道焊接極其附過的去黑、去焊渣加工）去毛刺發生、飛邊、腐蝕皮、不銹鋼板管，型材接觸面的精致型亞光加工（耐污性適合、可蓋住刮傷）、去瀝青水泥墊塊土、石雕接觸面污圬等加工。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆主要是的技術運作 Main technical parameters

服務器機型 Model	STR-B型無塵自動循環回收式噴砂機
工作上(shang)電原(yuan) Work power	380V 50HZ
水汽(qi)有(you)壓力 Air pressure	5-7kg/cm2
耗氣量(liang) Gas consumption	3m3/min
發電(dian)機最大(da)功率 Motor power	4kw
運轉效應(ying) Work efficiency	6-10m2
做工作圓的半徑 Work radius	10m 可會按(an)照供給加長版，主要在線咨詢售(shou)后
上班表現(xian)形式 Work form	半(ban)自動反(fan)復的環保再生資源回(hui)收Automatic cycle recovery
清洗品級 Clean level	Sa2-3
越(yue)來(lai)越(yue)粗糙(cao)度 Roughness	60μm左古
總重量 Weight	260kg
形(xing)態(tai)盡寸 Shape dimension	1380×830×1700mm
砂料型號規(gui)格 Sand material specifications	20-100#往上（1.0mm-0.04mm）

◆支持規模 Applicable scope

1.環境特殊要求高且無所有凈化設施的商(shang)務活動；

2.工作游戲等級較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

利用范疇：除銹方法、除面漆焊接清理去毛刺發生、飛邊、氧化物皮不銹鋼圓管、鋁板外面的典雅型亞光操(cao)作(zuo)（耐污性有效、可掩蓋(gai)刮破）去水(shui)泥(ni)墊(dian)塊(kuai)土、石(shi)雕外層污圬等操(cao)作(zuo)。

（主(zhu)要(yao)文件可決定性(xing)A型或打電話我集團）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 車輛基(ji)本特征 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已壓縮的(de)，目的(de)意(yi)義可(ke)是(shi)以(yi)便(bian)于在戶外(wai)安全施工(gong)(gong)挪(nuo)動以(yi)便(bian)于，大大更好的(de)削減了(le)勞動改造剛度(du)，從而加(jia)工(gong)(gong)處理(li)率在中(zhong)國這類型好產品(pin)快速；能夠寬廣買家的(de)同(tong)一青睞，并以(yi)經能夠了(le)豐富的(de)產品(pin)推(tui)廣和選用！（明確相關(guan)資料可(ke)參考資料A型或(huo)打(da)電話我(wo)子公司）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

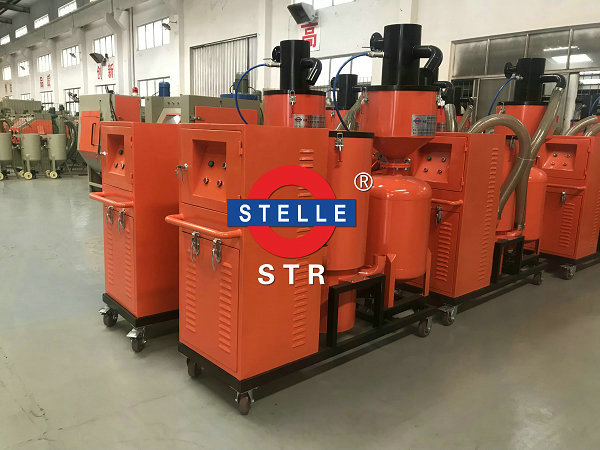

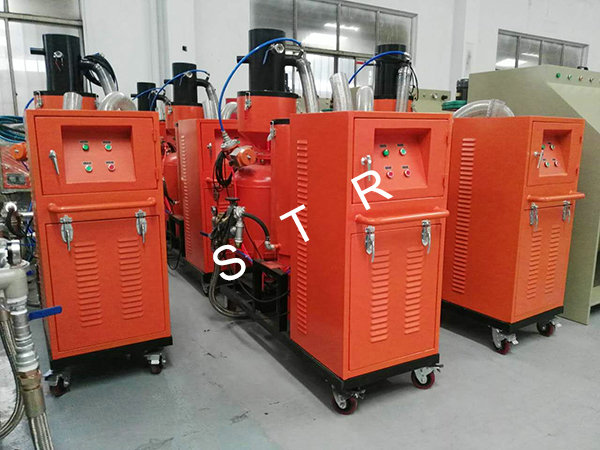

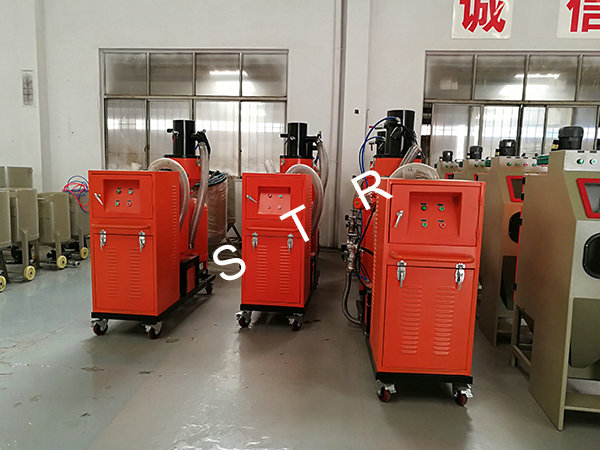

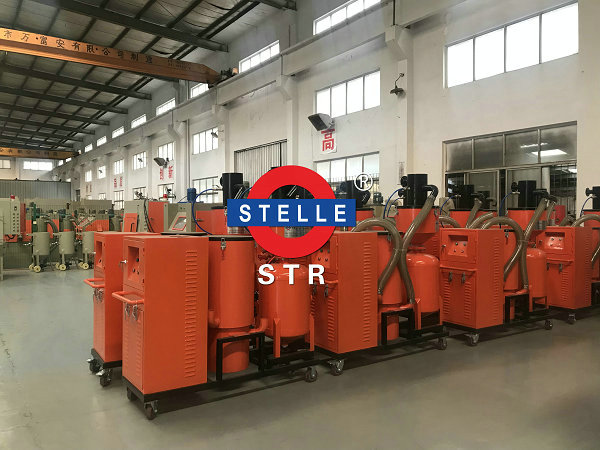

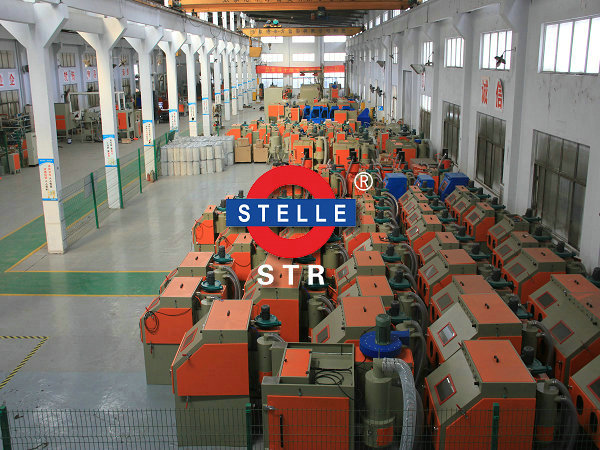

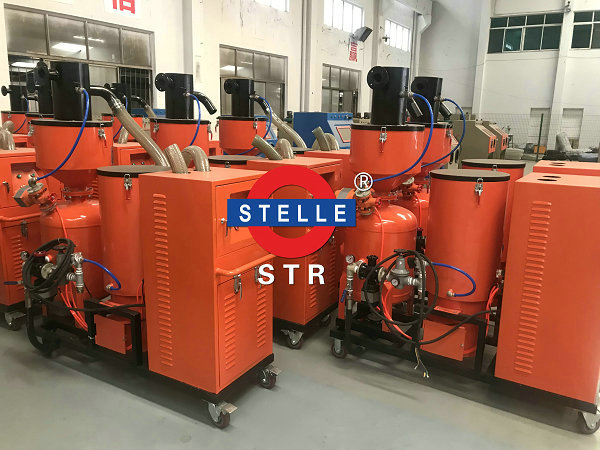

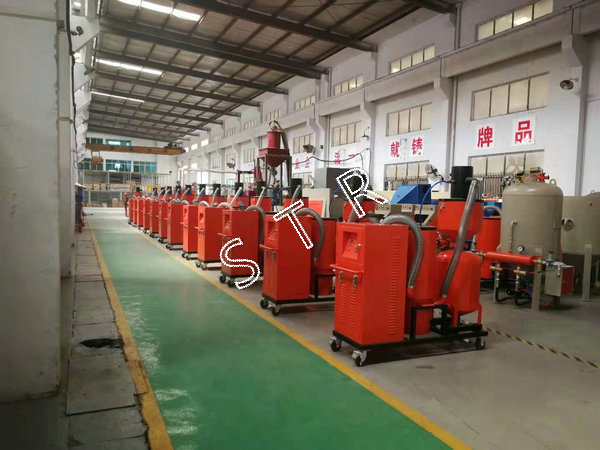

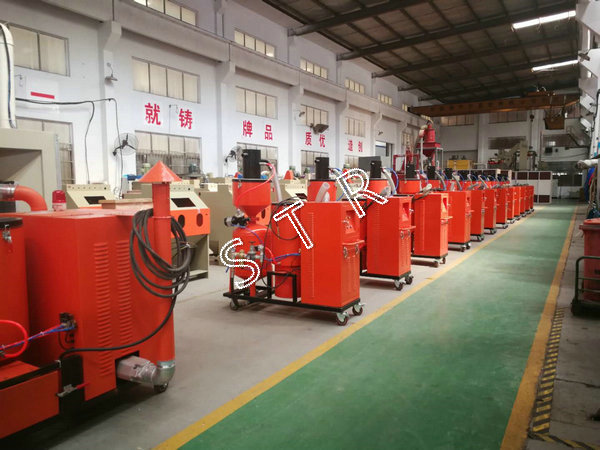

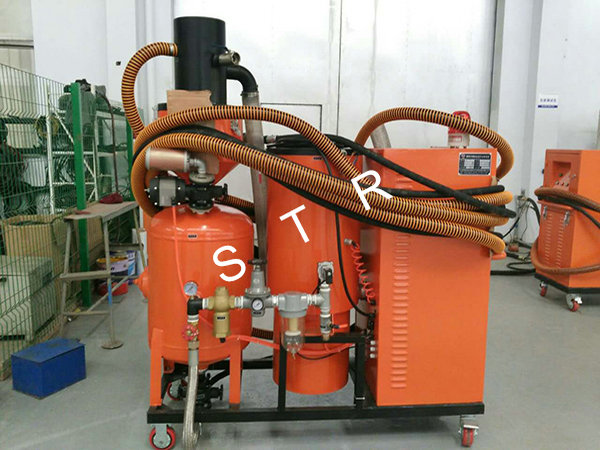

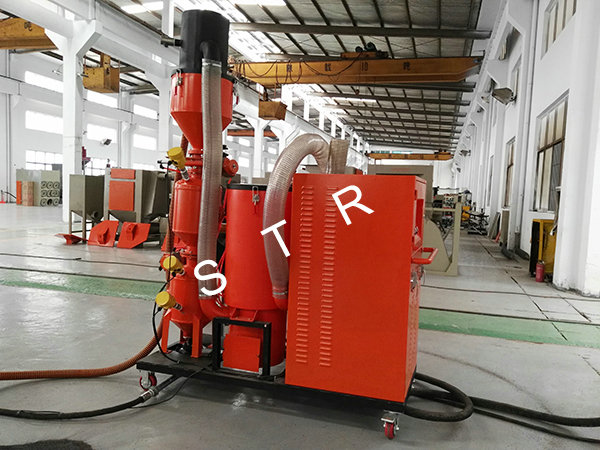

部份無塵自動循環環保型噴砂機案例:
